Product Description:

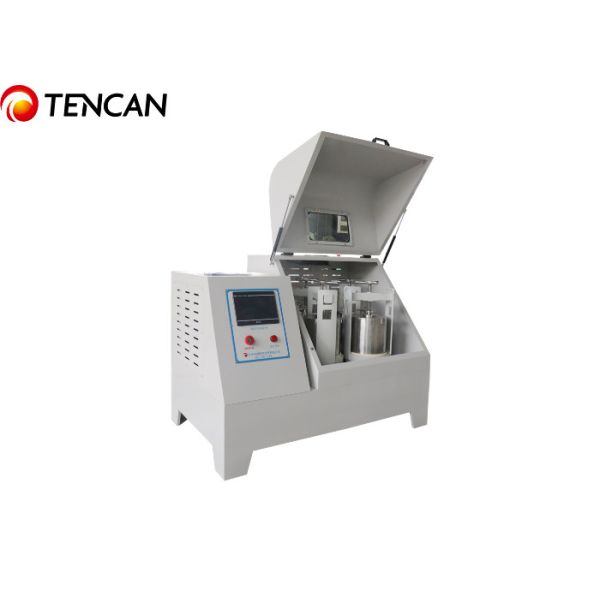

The Vertical Production Planetary Ball Mill is an essential device used for producing high-tech materials through milling, fine grinding, powder mixing, nano powder making, new product development, and small batch production. The Tencan planetary ball mill distinguishes itself from other mills by virtue of its compact size, high efficiency, quiet operation, and comprehensive functionality.
The Tencan planetary ball mill is an ideal equipment for R&D institutions, universities and enterprise laboratories to obtain fine powder samples. With four working positions, this machine allows you to collect up to four samples at the same time. Additionally, when equipped with vacuum ball mill jars for grinding, it is possible to get powder samples under vacuum environment.
Whether you're engaged in research, developing a novel product, or manufacturing small batches, the Tencan planetary ball mill's advantages and features position it as an optimal choice for your needs.
Features:
- Product Name: Planetary Ball Mill
- Max Production Capacity: 6.6L
- Materials of Jar: Stainless Steel,agate, Nylon, Corundum, Zirconia
- Feeding Size : 0.1-10mm
- Voltage: 220V Or 110V, 50 Or 60Hz
- Key Word: Touch Screen Lab Planetary Ball Mill
This Ball Mill Grinding Machine, a Planetary Ball Milling Device, excels in efficiently grinding a wide range of materials. Featuring a Touch Screen Lab Planetary Ball Mill, the device offers user-friendly operation. With a maximum production capacity of 6.6 liters, the Ball Mill Grinder is compatible with jars made of Stainless Steel, agate, Nylon, Corundum, and Zirconia. The device boasts a feeding size range of 0.1-10mm, enabling precise grinding tailored to your specific requirements.
Technical Parameters:
| Operate Mode | Two or Four Grinding Jars Working Together |
| Key Word | Touch Screen Lab Planetary Ball Mill |
| Voltage | 220V or 110V, 50 or 60Hz |
| Warranty | 1 Year |
| Feeding Size | 0.1-10mm |
| Materials of Jar | Stainless Steel, Agate, Nylon, Corundum, Zirconia |
| Weight | 330kg |
| Product Name | Digital PLC Planetary Ball Mill |
| Rotate Speed | 0-430rpm |
| Max Production Capacity | 6.6L |
Applications:
The TENCAN XQM-20 Planetary Ball Mill excels in a multitude of scenarios and applications. It is particularly suited for grinding, mixing, and homogenizing materials within laboratories, research centers, and industrial settings. With its two or four grinding jars operating simultaneously, this mill is ideally equipped to handle a variety of materials, including hard, soft, brittle, fibrous, and wet substances.
The Planetary Milling Ball Mill is equipped with a 4KW motor with a voltage of 220V or 110V, 50 or 60Hz. The rotate speed of 0-430rpm makes it efficient in grinding materials at a high speed. It can achieve high-quality grinding results in a short amount of time. This device is also equipped with a safety switch that automatically cuts off the power when the cover is opened, ensuring the safety of the user.
The TENCAN XQM-20 Planetary Ball Mill is easy to operate and maintain. It is also user-friendly with a clear and easy-to-understand manual. Its packaging details include a Plywood Case & Foam, ensuring its safety during transport. The delivery time for this product is 15-20 days upon receipt of payment. Payment terms include T/T, Western Union, and L/C, and the price is negotiable.
With a minimum order quantity of 1 set and a supply ability of 200 sets per month, the TENCAN XQM-20 Planetary Ball Mill is readily available to cater to different needs and applications. Its 1-year warranty ensures its quality and reliability, giving customers peace of mind. Invest in the TENCAN XQM-20 Planetary Ball Mill today and experience the efficiency and versatility of this planetary milling ball mill.
Support and Services:
The Planetary Ball Mill is a high-energy ball mill that is used for making fine powders, mixing and homogenizing soft, fibrous, hard, and brittle materials. It is equipped with jars and grinding balls and can perform dry and wet grinding. Our product technical support and services for the Planetary Ball Mill include:
- Installation and maintenance assistance
- Training for operation and maintenance
- Customization and modification of the equipment
- Troubleshooting and technical problem-solving
- Upgrades and replacement parts
- Calibration and validation services
Our team of experienced technical experts is dedicated to providing timely and efficient support to ensure the optimal performance of your Planetary Ball Mill.
Packing and Shipping:
Product Packaging:
- 1 Planetary Ball Mill
- 4 Stainless Steel Jars with Lids
- 1 Stainless Steel Media Set (20mm diameter)
- 1 Power Cord
- 1 User Manual
Shipping:
- Ships within 1-2 business days
- Free shipping within the United States
- International shipping rates apply
- Shipping weight: 50 lbs
