Product Description:

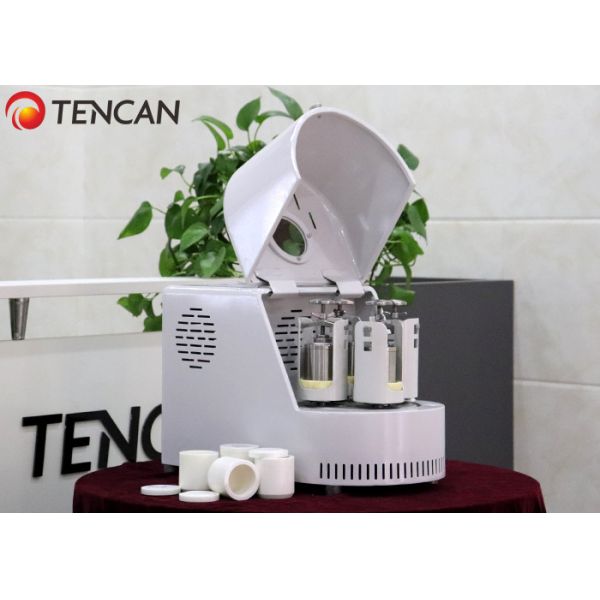

The 0.4L laboratory ball mill is an essential piece of equipment used for high-tech materials milling, fine grinding, powder mixing, nano powder making, new product development and small batch production. Tencan planetary ball mill is a great choice because of its small volume, high efficiency, low noise and complete functions. It is especially suitable for R&D institutions, universities, and enterprise laboratories to obtain fine powder samples.
Tencan planetary ball mill also offers versatility, as it can be designed with four working positions to allow users to obtain up to four samples (maximum) at once. Additionally, with the use of vacuum ball mill jars, it can also be used to obtain powder samples in a vacuum environment.
Features:
Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment. The Planetary movement principle is adopted in the machine, making possible greater speed, higher energy, better efficiency and smaller Granularity. Four powder samples, in different sizes and different materials, can be produced at one time. The machine is controlled by frequency converter and you may choose ideal rotating speed according to expected experimental result. It comes with features such as under voltage and over-current protection for the motor.The planetary ball mill also provides functions of timing power off, self-timing forward and reversal rotating, making it possible to customize any operation modes of one-way direction, alternation, succession and time setting according to experimental needs,so as to improve efficiency of grinding. The Tencan Ball Mill features a low center of gravity, steady performance, a compact structure, easy operation, reliable safety, low noise and small loss. Additionally, a safety switch is installed on the machine to prevent safety accidents should the safety cover be open while the machine is running.
Technical Parameters:
| Parameter | Value |
| Power | 0.25KW |
| Key Word | Nano Powder Grinding Ball Mill |
| Product Name | Mini Laboratory Planetary Ball Mill |
| Warranty | 1 Year |
| Feeding Size | Less Than 10mm |
| Working Model | 2 Or 4 Pots One Time |
| Rotate Speed | 90-870rpm |
| Output | Down To 0.1μm |
| Max Production Capacity | 0.132L |
| Voltage | 220V-50Hz,110V-60Hz |
| Ball Mill Grinder | Yes |
| Planetary Milling Ball Mill | Yes |
| Ball Mill Grinder Machine | Yes |
Applications:
Planetary Ball Mill, also known as Ball Milling Machine, is a kind of high-tech machinery used for grinding and milling materials into ultra-fine nanometer powder. It is developed by TENCAN, with Model Number XQM-0.4A, and the Place of Origin is Changsha Hunan China. It is certified with ISO CE, and the Minimum Order Quantity is 1 set, with Price negotiable. The Packaging Details are Carton & Foam, and the Delivery Time is 3-7 days. The Payment Terms are T/T, while the Supply Ability is 500 Sets per Month. It has a Max Production Capacity of 0.132L, and a Warranty of 1 Year. The Output is Down To 0.1μm, and it has a Power of 0.25KW. It is suitable for Nano Powder Grinding, and is widely used in the field of Ball Milling Machine.
Customization:
Customized Planetary Ball Mill
- Brand Name: TENCAN
- Model Number: XQM-0.4A
- Place of Origin: Changsha Hunan China
- Certification: ISO CE
- Minimum Order Quantity: 1 set
- Price: negotiable
- Packaging Details: Carton & Foam
- Delivery Time: 3-7 days
- Payment Terms: T/T
- Supply Ability: 500 Sets per Month
- Rotate Speed: 90-870rpm
- Voltage: 220V-50Hz,110V-60Hz
- Product Name: Mini Laboratory Planetary Ball Mill
- Working Model: 2 Or 4 Pots One Time
- Output: Down To 0.1μm
Our Planetary Ball Mill is an ideal grinding machine for high-energy milling, which is used to grind ball mill, grinding machine and other materials for producing fine particles with high efficiency. It has the features of compact structure, low noise, high efficiency, and long service life. It is suitable for grinding a variety of materials with different properties, such as mineral ores, chemicals, ceramics, and so on.
FAQ:
-
1. Are you manufacturer or trade company?
We are one of leading manufacturers in China, which focuses on designing, manufacturing and selling all kinds of powder grinding equipment including planetary ball mills, roll ball mills, stir ball mills, crushers, mixers and sieve shakers as well as accessories matched with machines.
2. What is your delivery time if I place an order?
We often have a great deal of regular machine models and accessories in stock available. If you want to order our regular items, it takes about 1-3 working days to finish packing and inspection, Generally speaking we can make shipment of regular order from our warehouse within 3-7 working days after payment is received.
3. What questions about requirements are required to provide to us if you inquiry about ball mills?
Answers:
* What material is needed to be grind? By wet or dry method?
* How many liters of material are required to be ground per batch?
* What is feed size (mm) of starting materials?
* What final particle size (μm or nm or meshes) is required by grinding?
* Is material allowed with metal impurity contamination while grinding?
4. Can you provide testing service of grinding experiment before we place an order?
Yes. sample grinding experiment is available for any customer who is willing to send materials to us, and grinding experiment of sample is always free of charge.
Delivery address of material sample:
Changsha Tianchuang Powder Technology Co., Ltd
Room 804, 2nd Building, No.68 Luositang Road, Changsha Economic and Technological Development Zone, Changsha, Hunan, China 410100
Contact Name: Aivin Ai Mobile Phone: +86 13548659522
5. What’s your warranty?
One-year warranty period is provided. If any problem while you are using the machine, you can send Email to: service@lab-mills.com for after-sale services.
6. What is MOQ (Minimum Order Quantity) of one order?
One set of machine or one piece of accessories (like ball mill jar and balls) are acceptable.
